Ultra-thick & thermal conductive iGS
High thermal conductivity, low thermal resistance, ultra-thick, and ultra-lightweight.
Product Feature:
- CEGSX iGS Series possesses good flexibility and thermal stability; sheet and roll products are available, with customizable specifications and thicknesses
- Description
- Specification
Core Advantages of iGS CEGSX series
High thermal conductivity, low thermal resistance, ultra-thick, and ultra-lightweight. It possesses good flexibility and thermal stability; sheet and roll products are available, with customizable specifications and thicknesses.

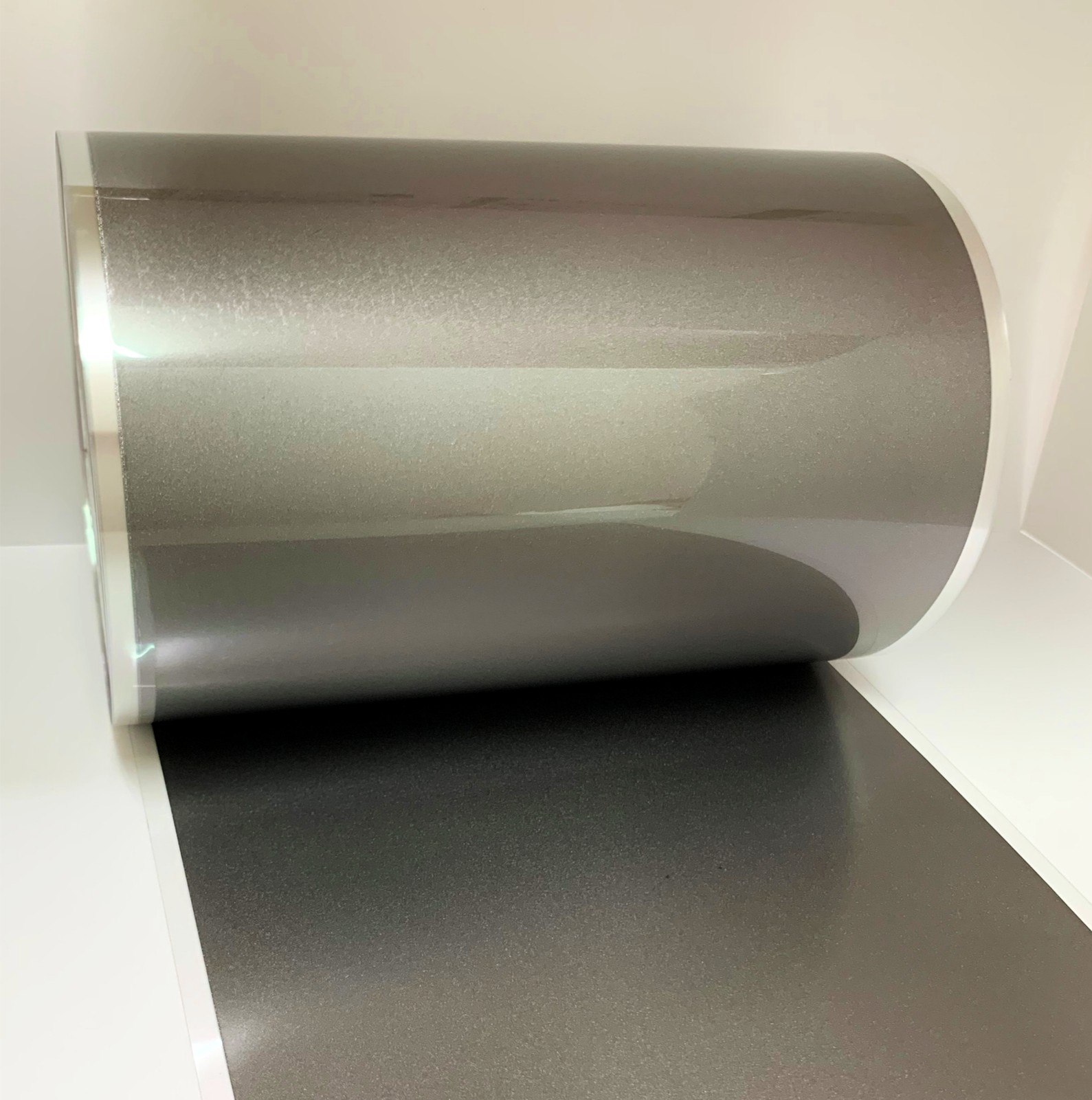

iGS CEGSX Series Ultra-Thick & Thermal Conductive
| Model | Thickness (μm) | PI Thickness (μm) | Density (g/cm³) | Thermal Conductivity (W/m.K) |
| CEGSX40 |
40±4 |
>700 | >2.0 | >1300 |
| CEGSX70 | 70±8 | >700 | >2.0 | >1300 |
| CEGSX100 | 100±9 | >700 | >2.0 | >1300 |
| CEGSX150 | 150±10 | >700 | >2.0 | >1300 |
| CEGSX200 | 200±11 | >700 | >2.0 | >1200 |
