Carbon Cloth
Carbon Cloth Gas Diffusion Layers (GDLs) are designed to meet the various requirements in Hydrogen (PEMFC) and Direct Methanol Fuel Cells (DMFC). These Gas Diffusion Layers are manufactured by proprietary woven technology and consistently perform well in fuel cell efficiency tests.
- Description
- Feature
- Specification
Carbon Cloth Gas Diffusion Layers (GDLs) are designed to meet the various requirements in Hydrogen (PEMFC) and Direct Methanol Fuel Cells (DMFC). These Gas Diffusion Layers are manufactured by proprietary woven technology and consistently perform well in fuel cell efficiency tests. Our second-generation carbon support has been meticulously developed to offer even better performance and characteristics.

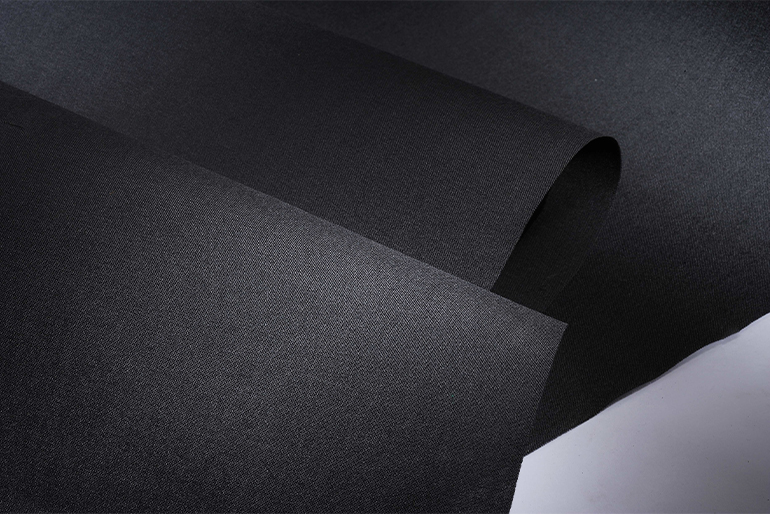

Cetech have two options of carbon cloth for customer's selection.
**W1S1011 is a carbon cloth with a Microporous Layer (MPL) and with thickness 0.41mm.
**W0S1011 is a carbon cloth without a Microporous Layer (MPL) and with 0.36mm in thickness.
It is a low-cost woven carbon cloth for Gas Diffusion Layer (GDL) materials.
Advantages of CT Carbon Cloth:
A gas diffused pathway from flow channels to the catalyst layer.
Help removing by-produced water outside of the catalyst layer and prevent flooding.
Keep some water on surface for conductivity through the membrane.
Heat transfer during cell operation.
Provide enough mechanical strength to hold MEA from extension caused by water absorbance.
Carbon Cloth Applications:
PEMFC fuel cell gas diffusion layer
DMFC fuel cell gas diffusion layer
MFC microbial fuel cell gas diffusion layer
Friction element/friction material substrate (ex. Automotive clutch facing, drag washer)
Carbon-carbon composite substrate

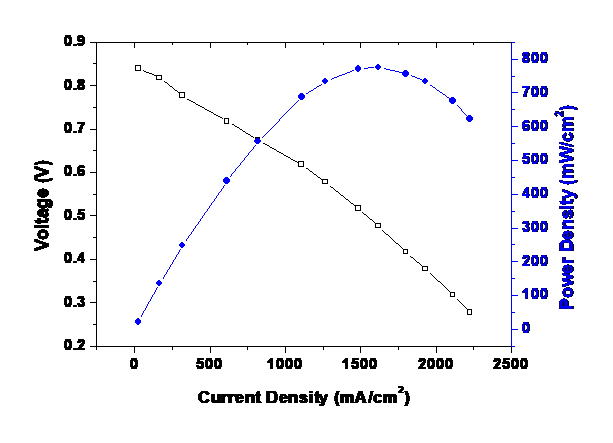

Carbon Cloth Electrochemical Performance
| Test Equipment | FCED® PD50 / Asia Pacific Fuel Cell Technologies, Ltd. | ||
|---|---|---|---|
| Reaction Area | 25 cm2 | Fuel Supply Method | Constant Flow |
| Type of Anode Fuel | H2 | Type of Cathode Fuel | Air |
| Anode Gas Flow | 1.5 slpm | Cathode Gas Flow | 2.5 slpm |
| Anode Humidification Temperature | 65°C | Cathode Humidification Temperature | 65°C |
| Relative Humidity | 90% | Torque | 25 kgf cm |
| Battery Temperature | 60°C | Back Pressure | Non |
| Bipolar Plate | gate-type | Gasket(@50Kpa) | 260 microns |
| CCM | Catalyst loading: An / Ca 0.1 / 0.3 mg / cm2 | ||
| GDL | W1S1011 | ||
Carbon Cloth with MPL & PTFE
| Measurement | Units | Method | W1S1011 |
|---|---|---|---|
| Thickness | mm | TECLOCK SM-114 | 0.41 |
| Basic Weight | g/m2 | ASIMID-646 | 200 |
| Air Permeability | sec | Gurley | <55 |
| Through-Plane Resistance | mΩcm2 | ASTM C-611 | <13 |
| Tensile Strength (MD) | N/cm | ASTM D-828 | 10 |
| Tensile Strength (XD) | N/cm | 5 |
*All data are the average values that do not represent specifications and tolerance.
Carbon Cloth without MPL & PTFE
| Measurement | Units | Method | W0S1011 |
|---|---|---|---|
| Thickness | mm | TECLOCK SM-114 | 0.36 |
| Basic Weight | g/m2 | ASIMID-646 | 130 |
| Air Permeability | sec | Gurley | <10 |
| Through-Plane Resistance | mΩcm2 | ASTM C-611 | <5 |
| Tensile Strength (MD) | N/cm | ASTM D-828 | 10 |
| Tensile Strength (XD) | N/cm | 5 |
*All data are the average values that do not represent specifications and tolerance.
