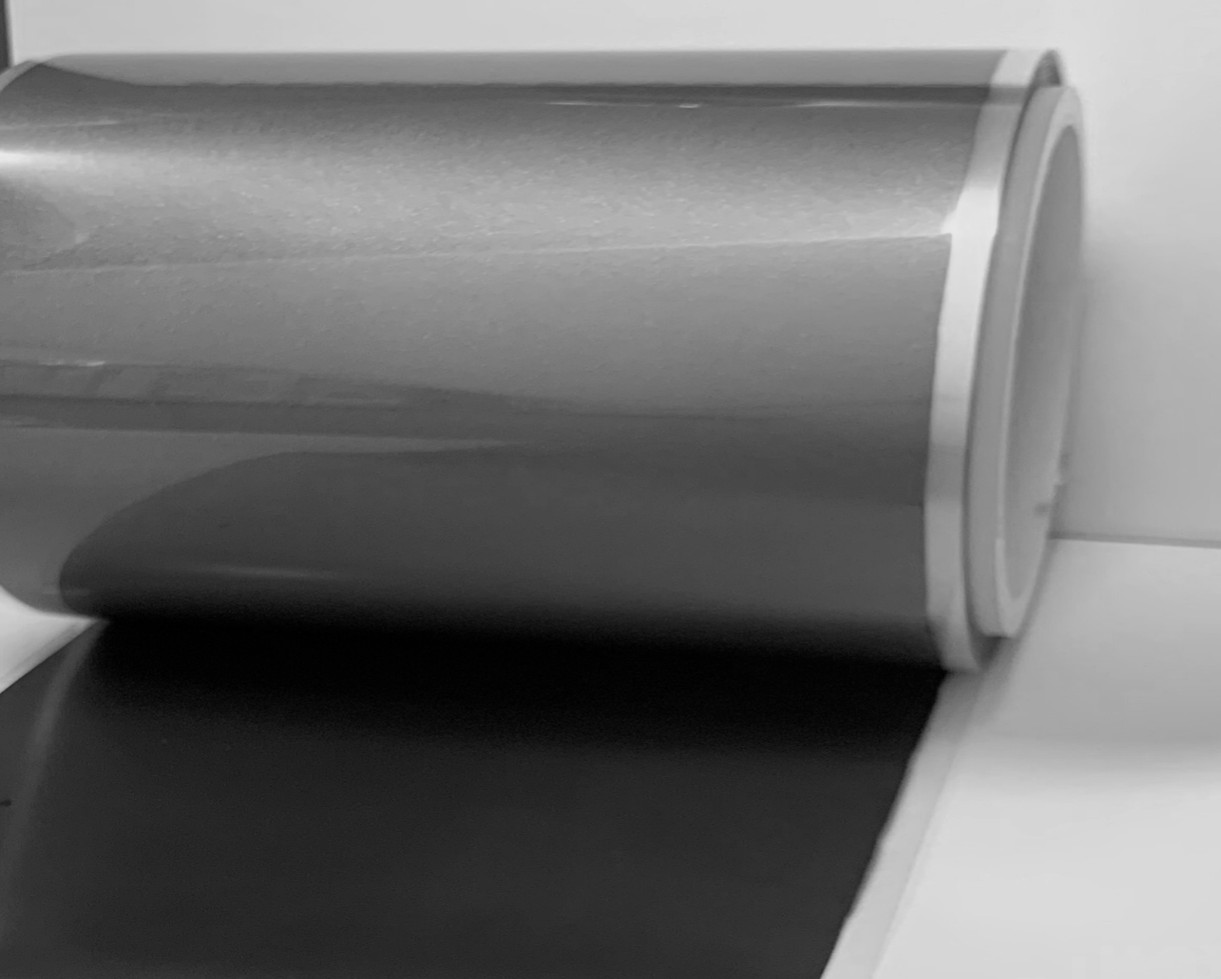

High Thermal Conductivity & Excellent Bent iGS
Excellent flexibility can adapt to complex bending structures without easily breaking
Product Feature:
- GEGSH iGS not only has an extremely high planar thermal conductivity but also excellent flexibility and aging resistance, making it an ideal choice for achieving efficient thermal management
- Description
- Specification
iGS CEGSH series for High Thermal Conductivity & Excellent Bent
Core Advantages of iGS CEGSH series
Through specialized processing, the graphite film in this series of products not only exhibits extremely high planar thermal conductivity but also excellent flexibility and aging resistance, making it an ideal choice for efficient thermal management in applications such as 5G base stations and high-performance computing centers.
iGS CEGSH Series High Thermal Conductivity & Excellent Bent
| Model | Thickness (μm) | PI Thickness (μm) | Density (g/cm³) | Thermal Conductivity (W/m.K) |
| CEGSH32 | 32 | 68 | 2.0 | 1600 |
| CEGSH40 | 40 | 72 | 2.0 | 1600 |
| CEGSH500 | 50 | 100 | 2.17 | 1776 |
| CEGSH060 | 60 | 100 | 2.16 | 1761 |
| CEGSH070 | 70 | 160 | 2.16 | 1774 |
